Introduction

Recently, additive manufacturing (AM) has evolved as one of the most widely explored processes for fabricating bio-medical devices or facilities for medical applications [1]. AM follows a sequential procedure for producing a functional part from a Computer-Aided Design model (CAD) by depositing the material in the form of a layer over the other layer [2]. The ability of AM to produce patient-specific products with complex contours and conformal shapes makes it more popular nowadays [3]. As per ISO ASTM 52900, AM is classified into seven categories depending upon the working principle utilized to join the material successively using the CAD model data. Fused deposition modeling (FDM), among the material extrusion techniques, is one of the most flexible techniques and can process various materials [4]. FDM ensures high dimensional tolerance and improved mechanical strength while processing bio-polymers for producing biomedical implants or scaffolds [5, 6]. Apart from this, among the metal powder-based 3D printing process, direct metal laser sintering (DMLS) offers certain benefits over others, such as acceptable customization capabilities to produce internal structures and external morphology with a range of porosities [7]. DMLS is generally used for fabricating dental and orthopaedic implants utilizing functionally graded materials to achieve elastic strength similar to the bones while minimizing the effect of stress shielding [8, 9]. Various metals and their alloys are used in DMLS printing. Specifically, Ti and stainless steel (SS)-based alloys are the most reported materials for implant fabrication due to their sound mechanical characteristics and corrosion resistance behaviour under in-vivo conditions [10]. The 17-4 precipitate hardened (PH) SS alloy is a suitable biomaterial, offering good mechanical stability and excellent biocompatibility under in-vitro cytotoxicity examination [11, 12].

Diaphragmatic hernia (DH) is one of the most reported maladies among the bovines, and it occurs due to the passage of abdominal viscera into the thoracic cavity [13]. Increased intra-abdominal pressure due to trauma, hardware perforation, or during an advanced stage of pregnancy results in the progressive weakening of the diaphragm and, therefore, leads to the occurrence of thoracoabdominal disorder [14, 15]. Rumenotomy and herniorrhaphy are the most widely used surgical procedures to fix the hernia among bovines [14]. Prosthetic meshes or biological grafts are generally used to overcome the recurrence of DH, as these can provide tension-free repair over the surgical site [16]. A range of bio-materials and their composites were reported in the past for the fabrication of these prosthetic meshes like polyethylene terephthalate, polypropylene (PP), polytetrafluoroethylene (PTFE) and other biological materials also [17–19]. Certain disadvantages of using these synthetic materials are seroma formation, non-comparable tensile strength, adhesions, etc. [20, 21].

PVDF (polyvinylidene fluoride) is a semicrystalline polymer, and due to its piezoelectric nature, it is used extensively for sensing applications [22]. High tensile strength, impact toughness, and biocompatible nature make it suitable for fabricating prosthetic meshes [23]. Reinforcement of filler materials like hydroxyapatite (HAP) and chitosan (CS) can enhance biocompatibility and bioactivity and improve the final component’s mechanical strength [24]. Measuring physiological signals produced by any electronic device, such as a transducer or any controlled equipment, is a part of biomedical telemetry for communicating through implantable medical devices [25]. Due to their flexible design, miniaturization, and conformability benefits, implantable patch antennas evolved as a compelling choice for health monitoring applications [26, 27].

The conformal antennas offer impressive properties like reduction in size and capability to work in multiple frequency bands. They are also effective in wearable and implantable applications where round or cylindrical contours are desired [28]. The literature review reveals that much work has been reported on microstrip patch antennas (MPAs) and hernia mesh implants [29–31]. Still, little has been identified on the usage of PVDF-HAP-CS for developing mesh in sensors with a conformal approach to detect the recurrence of DH. In addition, a detailed bibliographic analysis has been performed in this study based on the data extracted through the Web of Science (WOS) database to identify the research gap. For the analysis, keywords like “3D printing”, “hernia mesh”, “flexibility”, “implant”, and “conformal” were searched in WOS. As a result, 705 documents appeared (372 were review papers, 263 were research articles, and 640 were journal papers). To further refine the results, a new set of keywords was used, i.e., “biomedical implants”, “flexible” and “in-vitro”, and as a result, 108 documents were found. It was observed that with the addition of the keyword “3D printing” in the search string, only 15 papers appeared, indicating that limited work has been reported in the field.

Further, the network diagrams have been constructed using the WOS data to explore the research gaps. VOS viewer (bibliometric tool) was used to build the web diagrams (Figure 1), and the text data obtained from WOS has been processed in VOS viewer. Further, to perform the analysis, the minimum number of occurrences was selected as 6, and based on that, 359 out of 5,092 total terms meet the threshold value. Figure 1a represents the web diagram based on the WOS data obtained after searching for desired keywords. Four clusters based on random term allocation were formed in Figure 1a, represented by different colour codes. Large-size nodes represent the maximum number of interconnections with other nodes and hence represent a current research area that needs to be focused on. Chronic pain, postoperative pain, and hernia repair are among the most highlighted keywords in the network diagram, and they represent the need for a hernia repair solution with enhanced technology to stop the recurrence of DH.

Display full size

Figure 1.

Bibliographic analysis based on the keywords. (a) “3D printing”, “hernia mesh”, “flexibility”, “implant”, and “conformal”; (b) “herniorrhaphy”, “recurrence”, “mesh repair”; (c) co-occurrence analysis based on the keyword “recurrence”. Figure 1a contains three broad clusters (i.e., blue, green, and red), other than that, some nodes that appeared in yellow colour are least relevant to the searched keywords as these have very few interconnections with other nodes and small nodes size (representing low weight percentage)

Similarly, Figure 1b represents the network diagram with 5 clusters with different colour codes. In this diagram, nodes with maximum link strength are herniorrhaphy, recurrence, mesh repair, and outcomes. The keyword “recurrence” is highlighted and represented in Figure 1c to perform the co-occurrence analysis further. It was observed that limited materials like PP appeared for fabricating hernia meshes with postoperative complications like recurrence, chronic pain, etc., highlighting the need for material that matches the mechanical properties of the diaphragm and an intelligent solution to monitor a patient’s health.

Materials and methods

In this study, 17-4PH SS and Cu were used as conducting materials for analyzing the sensing and conformability behaviour of the mesh in a sensor for the health monitoring of veterinary patients. Usually, Cu, in the form of adhesive tape, is utilized to make the conducting layers of MPA-based sensors. A detailed methodology comprising the steps involved in conducting this study is shown in Figure 2. First, the identification of the nature and severity of the hernia has been ascertained through a medical imaging facility, i.e., X-ray or ultrasonography, and based upon that, the size of the mesh implant has been finalized. Since the hernia mesh implant itself acts as a bio-sensor that works on the principle of MPA therefore, the material selection for the development of hernia mesh was performed based on the mechanical, biocompatible, and dielectric properties of the materials (i.e., PVDF-HAP-CS and 17-4PH SS) [31–33]. This study parallelly investigates the dielectric properties of mesh material (i.e., PVDF-HAP-CS) for designing the conducting materials’ bio-sensor and in-vitro properties. Initially, a ring resonator (RR) was designed in the high-frequency structure simulator (HFSS) software to calculate the dielectric parameters [i.e., dielectric constant (ε_r) and loss tangent (tan δ)] of the substrate material while using both Cu and 17-4PH SS as conducting patch and ground planes (for comparison purposes only due to its extensive use in electronic circuits). After the extraction of dielectric parameters, the hernia mesh-based sensors were designed and simulated in the HFSS software to get the radio frequency (RF) behaviour of the sensors [i.e., scattering parameter as reflection coefficient (S₁₁) vs f_r, gain, SAR value, and radiation pattern], and a comparison study based on the conformal designs and effect on the conducting materials on the performance of sensor has been shown in this work. Simultaneously, an in-vitro analysis of both the conducting materials was performed to analyze the degradability or biostability of the implant inside the body. Linear polarization resistance (R_p), open-circuit potential (OCP), and Tafel analysis have been performed on the conducting materials by making them the working electrode. Finally, based on these analyses, the corrosion rate (CR) for the respective materials has been calculated. Finally, based on the above two comparative analyses, the best suitable settings (conformability and biocompatibility) for manufacturing the hernia mesh implant have been suggested in this study.

Display full size

Figure 2.

Steps involved in the study. HFSS: high-frequency structure simulator; RF: radio frequency; DH: diaphragmatic hernia

In this study, for performing the in-vitro analysis, a metallic component (i.e., 17-4PH SS) having dimensions 50 mm × 20 mm × 4 mm was fabricated through a DMLS 3D printer. For the fabrication of the testing sample, initially, powder processing was performed, which included sieve shaking and preheating of the powder in the hot furnace to remove pre-existing moisture content. Parallelly, the CAD file of the sample was imported into the 3Dxpert software, and build support was provided to the model for easy removal of the part. Previous studies [30] suggest adding inclined wall support results in minimizing residual stresses. Slicing has been done following the adjustment of working parameters, i.e., laser power (LP)—120 W; scanning speed (Sc.S)–1,200 mm/s; and layer thickness (LT)—30 µm.

Medical imaging facility

For making customized biomedical implants or organs, AM has recently evolved as an effective technology capable of fabricating parts with enhanced surface quality utilizing minimum manufacturing time. In this work, the veterinary experts performed an X-ray of the bovine to diagnose the severity of the disease (i.e., DH) and identify the dimensions of the affected area. Figure 3a highlights the bovine under X-ray examination, and the observed data (Figure 3b) highlights the presence of abdominal viscera in the thorax cavity, confirming that the bovine is suffering from DH. While observing closely, the traces of the reticulum (the 2nd compartment of the bovine stomach) have been traced between the 4th and 5th intercostal space and represent the case of thoraco-abdominal disorder. X-ray examinations were conducted as part of routine animal data collection in the X-ray laboratory of GADVASU, Ludhiana, India, and were part of routine non-experimental agricultural practices. These X-ray examinations are not subject to the Breeding of and Experiments on Animals (Control and Supervision) Rules (India). Therefore, ethical approval from the animal experimentation ethics committee is not required.

Display full size

Figure 3.

Diagnosis of DH in the bovine through X-ray examination. (a) The bovine; (b) X-ray examination (image source: X-ray laboratory, GADVASU, Ludhiana, India)

Dielectric characteristics

To identify the dielectric properties of the substrate material, i.e., PVDF-HAP-CS, a standard procedure of ring-resonator (due to low radiation losses) has been followed in this study. The dimensions of the ring and the feed lines have been evaluated using Eq. 1–6 [29], and based on that, an RR has been designed in the HFSS software. Figure 4 represents the designed RR samples with 17-4PH SS and Cu (adhesive tape) as conductive materials for making the ring, feed lines, and ground planes. For analysis of the dielectric parameters, specific input parameters have been required for designing the ring-resonator, i.e., the theoretical ε_r of substrate material (7.5 for PVDF), thickness of the substrate (0.8 mm), and operating frequency 2.45 GHz for an input impedance of 50 Ω.

Eq. 1$$2\pi R=n{\lambda }_g$$

Eq. 2$${\lambda }_g=\frac{c}{\surd {\epsilon }_{eff}}\times \frac{1}{f_r}$$

Eq. 3$${\epsilon }_{eff}=\left[\frac{{\epsilon }_r+1}{2}\right]+\left[\left(\frac{{\epsilon }_r-1}{2}\right){(1+12\frac{h}{w})}^{-0.5}\right]$$

Eq. 4$$L=\frac{{\lambda }_g}{4}$$

Eq. 5$$R_i=R-\frac{w}{2}$$

Eq. 6$$R_o=R+\frac{w}{2}$$

Display full size

Figure 4.

Simulated results of ring resonator test. Ring resonator with 17-4PH SS as conductive material (top view) (a); ring resonator with Cu alloy as conductive material (top view) (b); 3D model of RR with 17-4PH SS (c); 3D model of RR with Cu alloy (d); insertion loss (S₂₁) vs frequency (f_r) with 17-4PH SS (e); S₂₁ vs f_r with Cu (f). PH: precipitate hardened; RR: ring resonator; SS: stainless steel

R is the mean ring radius, n is the harmonic order for the resonance, λ_g is the guided wavelength of the signal, ε_eff is the effective dielectric constant of the substrate material, c is the speed of light, f_r is the resonant frequency, R_i and R_o are the inner and outer radius of the ring, w is the width of the microstrip feed, h is the substrate height, ε_r is the dielectric constant of the substrate material (theoretical value), and L is is the length of the feed line.

It was observed that the RR with 17-4PH SS resonated at 2.387 GHz while possessing the insertion loss of –32.3253 dB, whereas the Cu-based RR resonated at 2.41 GHz with the S₂₁ value of –26.75. Further, based on the above behaviour, the dielectric properties of the substrate material have been calculated using Eq. 7 and 8 [29]. Table 1 represents the calculated dielectric properties (ε_r and tan δ) of PVDF-HAP-CS against both conductive materials, i.e., 7.6856, 0.0034 for 17-4PH SS, and 7.4678, 0.0033 for Cu.

Eq. 7$${\epsilon }_r=\frac{(2\times {\epsilon }_{eff}+M-1)}{M+1}$$

Eq. 8$$\tan \delta =\frac{{\alpha }_d{\lambda }_o}{27.3}\left(\frac{\left({\epsilon }_r-1\right)\sqrt{{\epsilon }_{eff}}}{{\epsilon }_r\left({\epsilon }_{eff}-1\right)}\right)$$

Table 1.

Dielectric properties of the PVDF-based composite with different conducting materials

Dielectric properties	Substrate material
	PVDF-HAP-CS with 17-4PH SS	PVDF-HAP-CS with Cu tape
Measured values	S21 = –32.33 dB fr = 2.39 GHz	S21 = –26.75 dB fr = 2.41 GHz
Calculated values	εr = 7.6856 tan δ = 0.0034	εr = 7.4678 tan δ = 0.0033

Display full size

PVDF-HAP-CS input parameters: theoretical ε_r = 7.5; thickness = 0.8 mm. PH: precipitate hardened; PVDF-HAP-CS: polyvinylidene fluoride-hydroxyapatite-chitosan; SS: stainless steel. S₂₁ is insertion loss; f_r is frequency; ε_r is the calculated dielectric constant of the substrate material; tan δ is the loss tangent of the material

ε_r is the calculated dielectric constant of the substrate material, ε_eff is the effective dielectric constant, M is the function of substrate height and the fringing effect of the microstrip edges, α_d is the attenuation factor of the dielectric, λ_o is the wavelength of the resonance signal in free space, and tan δ is the loss tangent of the material.

Results

The conformability study of the hernia mesh implant has been ascertained through the simulation of the biosensors designed in the HFSS software based on the calculated values of the dielectric parameters. Here, in this study, different sensing characteristics have been plotted in the Ansys HFSS for PVDF-HAP-CS substrate using different conducting materials at a time, and the effect of the conformal angle on the sensing characteristics was also examined in this study by varying the conformal angles from 0°, 30°, and 45°. The designed biosensors work on the principle of the MPA and comprise three layers, i.e., a metallic patch, substrate, and a ground plane (metallic). Figures 5 and 6 highlight the sensing behaviour of the designed sensors using 17-4PH SS and Cu as conducting materials, and a comparison of both materials is mentioned in Table 2.

Display full size

Figure 5.

The sensing behaviour of the designed sensors using 17-4PH SS. MPA with 0° conformal angle (a), SAR field at 0° conformal angle (b), S₁₁ vs f_r at 0° conformal angle (c), gain value at 0° conformal angle (d); MPA with 30° conformal angle (e), side view of 30° conformal angle (f), S₁₁ vs f_r at 30° conformal angle (g), gain value at 30° conformal angle (h); MPA with 45° conformal angle (i), side view of 45° conformal angle (j), S₁₁ vs f_r at 45° conformal angle (k), gain value at 45° conformal angle (l). f_r is frequency; S₁₁ is reflection coefficient

Display full size

Figure 6.

The sensing behaviour of the designed sensors using Cu. MPA with 0° conformal angle (a), SAR field at 0° conformal angle (b), S₁₁ vs f_r at 0° conformal angle (c), gain value at 0° conformal angle (d); MPA with 30° conformal angle (e), side view of 30° conformal angle (f), S₁₁ vs f_r at 30° conformal angle (g), gain value at 30° conformal angle (h); MPA with 45° conformal angle (i), side view of 45° conformal angle (j), S₁₁ vs f_r at 45° conformal angle (k), gain value at 45° conformal angle (l). f_r is frequency; S₁₁ is reflection coefficient

Tafel analysis

The degradation of the materials was analyzed based on the Tafel plots (Figure 7) drawn for both materials. The corrosion current (I_corr), as well as the CR, has been evaluated using Eq. 9 and 10 [30]. The R_p of 17-4PH SS is much higher than the Cu, whereas the I_corr of Cu (9.00 × 10^–7 A) is also higher than the 17-4PH SS (6.56 × 10^–7 A). Similarly, the CR of SS-alloy (5.12 × 10^–8 mm/year) was observed as lower than the Cu (5.8 × 10^–8 mm/year), therefore indicating the marginal difference between the two (Table 3). However, due to the low value of CR, it showcases the suitability of 17-4PH SS for implant applications.

Eq. 9$$I_{Corr}=\frac{1}{R_p}\times \frac{{\beta }_a\times {\beta }_c}{2.303({\beta }_a+{\beta }_c)}$$

Eq. 10$$CR=\frac{I_{corr}\times EW\times K}{\rho \times A}$$

Display full size

Figure 7.

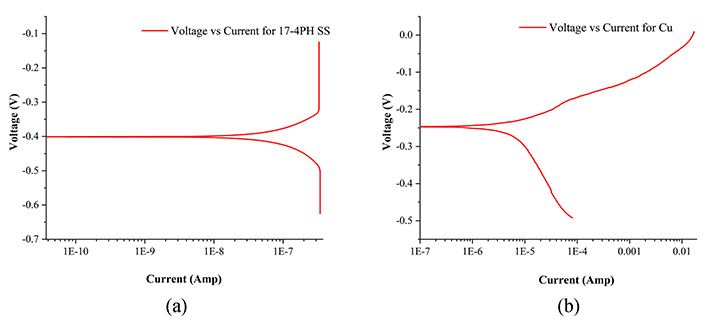

Tafel plots for 17-4PH SS (a) and Cu (b)

Table 3.

Comparison table highlighting in-vitro results for both materials

In-vitro results	17-4PH SS	Cu
Linear polarization resistance (Rp) (Ω)	3.05 × 106	3.47 × 104
Anodic constant (βa)	0.08404	0.05285
Cathodic constant (βc)	0.10121	0.19952
Equivalent weight (EW) (g/mol)	27.92	31.80
Density (ρ) (g/cm3)	7.80	8.96
Exposer area (A) (cm2)	1.5	1.8
Constant (K) (mm/year)	0.00327	0.00327
Corrosion current (Icorr) (A)	6.56 × 10–7	9.00 × 10–7
Corrosion rate (CR) (mm/year)	5.12 × 10–8	5.80 × 10–8

Display full size

I_corr is the corrosion current, R_p is the polarization resistance, β_a is the anodic constant, β_c is the cathodic constant, EW is the equivalent weight in g/mol, ρ is the material density, A is the exposed cross-sectional area, and K is the constant.

The present study focuses on the conformability of the sensor by analyzing the effect of pressure on the dielectric properties of the sensor mounted on the diaphragm during variable loading conditions as an extension of previously reported work [33]. An in-vivo study is required to ascertain the sensor’s performance inside the patient’s body. The current work doesn’t focus on the self-healing properties of the implant, but it can be explored in further studies to identify the 4D characteristics of the prepared composite. In the future, after obtaining the ethical committee’s clinical approval, the implant may be tested inside the body (in vivo) to analyze its compatibility with the surrounding tissues. In future studies, thermal analysis (i.e., differential scanning calorimetry) mimicking autoclaving of the composite may be performed for a range of temperatures to reduce the chances of infection or any complications of the implant inside the body. From the economic and technology transfer perspective, a techno-economic analysis may be performed in further studies to fabricate the sensor.

Discussion

The simulation-based comparison of the biosensors with conducting elements 17-4PH SS and Cu for different conformal angles indicates that the 17-4PH SS shows promising results over Cu in terms of higher gain values (up to 4.02 dB) and low SAR value (1.077 W/kg) with the resonant frequency lying in the ISM band and therefore may be used for implantable sensor applications and may be used as 3D-printed hernia mesh implant. The in-vitro results represent that both Cu and 17-4PH SS possess low values of CR, i.e., 5.80 × 10^–8 and 5.12 × 10^–8, respectively. Future studies may be performed on the fabrication of such sensors for smart hernia mesh implants to prevent the recurrence of DH among bovines.
