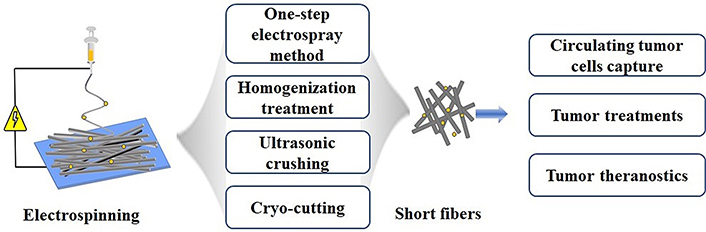

One-step electrospray method

The factors that affect the morphology of electrospun fibers include the relative molecular weight, concentration, viscosity, and solvent of polymers, and the viscosity has become the key factor [30, 31]. Generally, in the process of the one-step electrospray method, the polymers are difficult to extend to continuous slender fibers at a low viscosity of polymer solution, while breaking into SFs or spherical particles. The length of the prepared SFs can be changed by adjusting the voltage, flow rate, collection distance, and other parameters. The addition of micro-spherical silica particles to the polymer solution has a certain impact on the length of electrospun polymer fibers. Depending on the concentration of added silica particles, the morphology of nanofibers can be divided into four types: SFs, short bead fibers, short aggregated beaded fibers, and continuous bead fibers [27]. The average length of short nanofibers decreases from 52.4 μm to 15.3 μm with the increase of silica particle concentration from 0–8 wt% [27]. The nanofiber length is almost inversely proportional to the concentration of silica particles, suggesting that the length of the short nanofibers can be simply controlled by the amount of the added microspherical silica particles.

Although the one-step electrospray method possesses many advantages, such as simple operation and no subsequent secondary processing steps, there are still many variables in the electrospinning process, including the shape and size of fibers that are difficult to control, usually accompanied by the production of beaded fibers, liquid droplets, or spherical particles. Therefore, it is still necessary to optimize the processing conditions from other aspects to complete the preparation of SFs with desired properties.

Homogenization treatment

Homogenization treatment aims to break the nanofiber membrane into SFs of a certain length with the help of the mechanical shear force generated by the homogenizing cutter head when running at a high speed. For example, Li et al. [32] prepared electrospun gelatin/PLA fibrous mats. The mats were then cut into small pieces, dispersed in tert-butanol solution, and then homogenized to ensure even dispersion, followed by high-speed centrifugation. In another research, Li et al. [33] prepared graphene/Fe₃O₄/PLGA short nanofibers with a length of 11.90 μm ± 2.03 μm and a diameter of 256.5 nm ± 13.7 nm by an in-situ deposition method after homogenizer treatment. In general, SFs with good uniformity can be prepared at a high rotation speed and long homogenization time. The type of dispersion and the hydrophilicity of fiber materials are also considered to be important factors affecting the size and morphology of SFs. When hydrophobic fibers are homogenized in water, hydrophobic substances such as hexane with a poor density need to be added to the aqueous solution to ensure the uniform dispersion of fibers.

Ultrasonic crushing

The principle of the ultrasonic crushing method to prepare SFs is that the ultrasonic probe stimulates the liquid medium to produce dense small bubbles that can burst immediately to release energy and break the electrospun nanofiber membranes into SFs of micrometer length [34, 35]. The parameters of ultrasonic crushing include amplitude, frequency, and time. The increase in amplitude and time is conducive to the formation of SFs. It should be noted that during the ultrasonic process, higher power often leads to faster temperature elevation. Therefore, ultrasound crushing is usually carried out in ice baths to minimize the effect of temperature elevation on the mechanical properties or chemical properties of the created SFs. Furthermore, the toughness of electrospun fibers is an important factor affecting the ultrasonic preparation of SFs. Nanofibers with lower toughness are much easier to form SFs under ultrasound treatment than those with higher toughness. For instance, polystyrene (PS) nanofibrous mat with low toughness can be processed to form SFs with a length of 10.5 μm ± 6.2 μm after 60 s ultrasound treatment [34]. Fibrous mats with strong toughness are quite resistant to the deformation generated in the process of ultrasonic treatment and are difficult to form SFs directly and effectively from simple ultrasonic crushing. Additionally, the tendency of polymer nanofibers to become SFs is largely dependent on the ductility of the polymer during the ultrasound treatment. Brittle electrospun polymer films, such as PS and polymethyl methacrylate, are prone to form SFs with a length of about 10 microns [34]. Lastly, both the initial diameter of the fibers and the degree of nanofiber alignment for the electrospun fibrous mat affect the final length of the resulting SFs. For instance, electrospun nanofibrous mats composed of ductile polymers like poly(l-lactide) and poly(acrylonitrile) require additional treatments such as interaction with surfactants prior to sonication to make them conducive to the sonication-based cleavage [36].

Cryo-cutting

To prepare SFs through cryo-cutting, the fiber films are generally folded to a width of 1~2 cm, frozen with the embedding agent, and fixed in the frozen slicer before the cryo-cutting. The fiber films are cut into slices with a certain thickness in the direction perpendicular to the fiber orientation and finally dispersed in a solution to obtain SFs. Compared with the methods of electrospray and homogenization mentioned above, the most obvious advantage of cryo-cutting is that the length of SFs can be easily set to obtain a uniform morphology. In a recent study, Wei et al. [37] dipped the electrospun PLGA fiber mats into water, let them be frozen, sectioned them at a thickness of 50 μm, and then ultrasonically dispersed them to form SFs. In another study, Omidinia-Anarkoli et al. [38] prepared aligned electrospun PLGA fibers containing magnetic particles with a diameter of 689.7 nm ± 88.5 nm, which were then cut into SFs with four different lengths at 25.5 μm ± 1.8 μm, 51.1 μm ± 2.8 μm, 78.5 μm ± 1.2 μm, and 101.1 μm ± 5.0 μm, respectively.

Generally speaking, cryo-cutting is often adopted to prepare SFs when the glass transition temperature of polymers is lower than room temperature. Ultrasonic crushing method using a simple mechanical shear force hardly overcomes the viscoelasticity of fibers to make them fracture, while the cryo-cutting method can effectively break the fibers. However, the preparation of SFs by cryo-cutting has the defects of time-consuming, high cost, and poor dispersion. This reflects that cryo-cutting has certain requirements on the thickness, mechanical strength, and wettability of the oriented nanofibers.

Capture and release of CTCs

CTCs refer to cancer cells that detach from tumors, enter the circulatory system and various organs of the body with blood, and become the main cause of cancer metastasis. Therefore, the detection of CTCs in the peripheral blood is vital for early cancer diagnosis and prognosis after treatment. However, the concentration of CTCs in a large number of blood cells is extremely low, hence capturing CTCs rapidly and efficiently in blood samples is still challenging.

Establishing a platform for efficient screening and collection of CTCs is an important strategy to improve the survival rate of diagnosed patients. Numerous studies have demonstrated that electrospun nanofibers can improve the accuracy and sensitivity of specific CTC detection due to the biomimetic structure of the porous network and surface modification [23, 42]. Recently, SFs have also been developed as a capture platform for CTCs. In our previous work, we prepared Apt-modified magnetic short nanofibers (MSNFs) with magnetic response and targeting recognition functions (Figure 2A) [23]. MSNFs could effectively capture cancer cells with the assistance of an external magnetic field, and the capture efficiency reached about 87%, while the capture efficiency of white blood cells (WBCs) was only 2%, showing the specific capture performance of Apt-modified MSNFs (Figure 2B). The cancer cell capture ability can be visually demonstrated by scanning electron microscopic (SEM) observation of MCF-7 cells (a human breast cancer cell line) that are surrounded by MSNFs (Figure 2C). In addition, the universality of Apt-modified MSNFs was verified by capturing a variety of epithelial cell adhesion molecule-positive MCF-7, A549, and HepG2 cells due to the Apt modification on the surface of the MSNFs. After the decomposition of DNA Apt by Benzonase nuclease, the captured CTCs can be released with an efficiency of up to 90% and still have desired viability, which is convenient for subsequent monitoring and analysis of CTCs. Finally, a comparative study with commercial magnetic beads (MBs) showed that the capture efficiency of Apt-modified MSNFs (87%) is more or less equivalent to that of MBs (91%), while the CTC release efficiency of Apt MSNFs is significantly higher than that of MBs, proving the great potential of short nanofibers in CTC capture and release for cancer diagnosis applications [23].

Display full size

Figure 2.

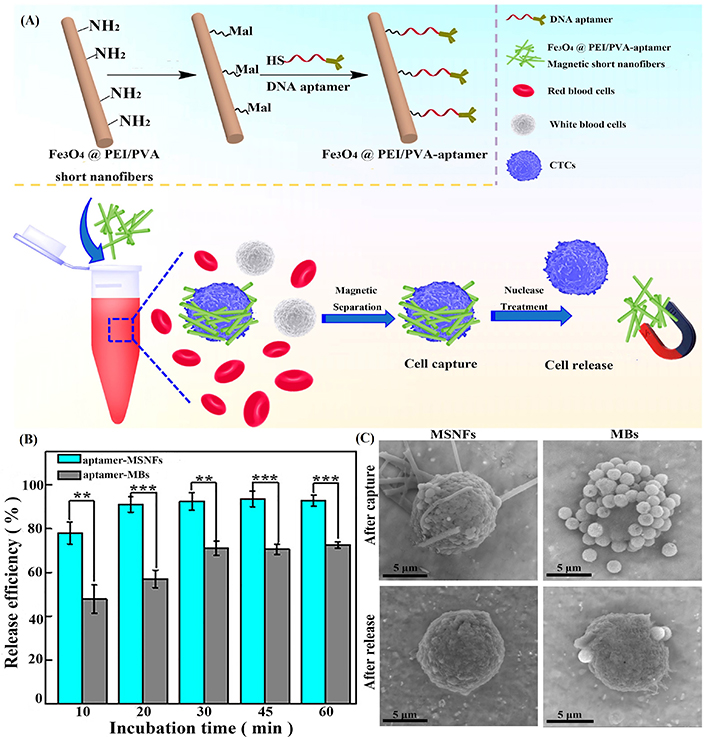

Preparation of composite SF materials and evaluation of their release efficiency on tumor cells. (A) Schematic illustration of the surface modification of MSNFs for cancer cell capture and release applications; (B) capture efficiency of MCF-7 cells and WBCs after incubation with Apt-MSNFs for different time periods; (C) SEM images of MCF-7 cells after capture by (I) Apt-MSNFs and (II) Apt-MBs and after release treatment (III) to remove the MSNFs and (IV) to remove the MBs, respectively. Mal: maleimide; -SH: sulfhydryl

Note. Adapted with permission from “Design of DNA aptamer-functionalized magnetic short nanofibers for efficient capture and release of circulating tumor cells,” by Xiao Y, Lin L, Shen M, Shi X. Bioconjugate Chem. 2020;31:130–8 (https://pubs.acs.org/doi/10.1021/acs.bioconjchem.9b00816). © American Chemical Society 2020.

Chemotherapy

Chemotherapeutic drugs can be loaded onto nanomaterials through physical encapsulation, non-covalent interaction, and covalent bonding to improve their water solubility and bioavailability and achieve effective chemotherapy due to the adjustability of size, shape, and surface characteristics of nanomaterials. In this regard, electrospun SFs meet the development requirements of most chemotherapeutic drug carriers. For instance, Ma et al. [39] successfully constructed dual drug-loaded short nanofibers as a drug delivery system for efficient chemotherapy of multidrug-resistant (MDR) cancer cells (Figure 3A). The DOX-loaded LDH nanodisks were incorporated into the α-TOS-doped PLGA nanofibers, which were then homogenized to form a SF-based drug delivery system with an average diameter of 830.2 nm and a mean length of 17.4 μm ± 7.3 μm. The short nanofibers display a pH-dependent multistage sustained drug release profile with a fast α-TOS release (Figure 3B) and a slow DOX release (Figure 3C). Due to the unique design, DOX has a more extended diffusion distance than α-TOS. Drug-free LDH/PLGA SFs have good cytocompatibility and can be taken up by MDR cancer cells. The dual drug-loaded LDH/PLGA SFs could effectively inhibit the growth of cancer cells in vitro through different mechanisms.

Display full size

Figure 3.

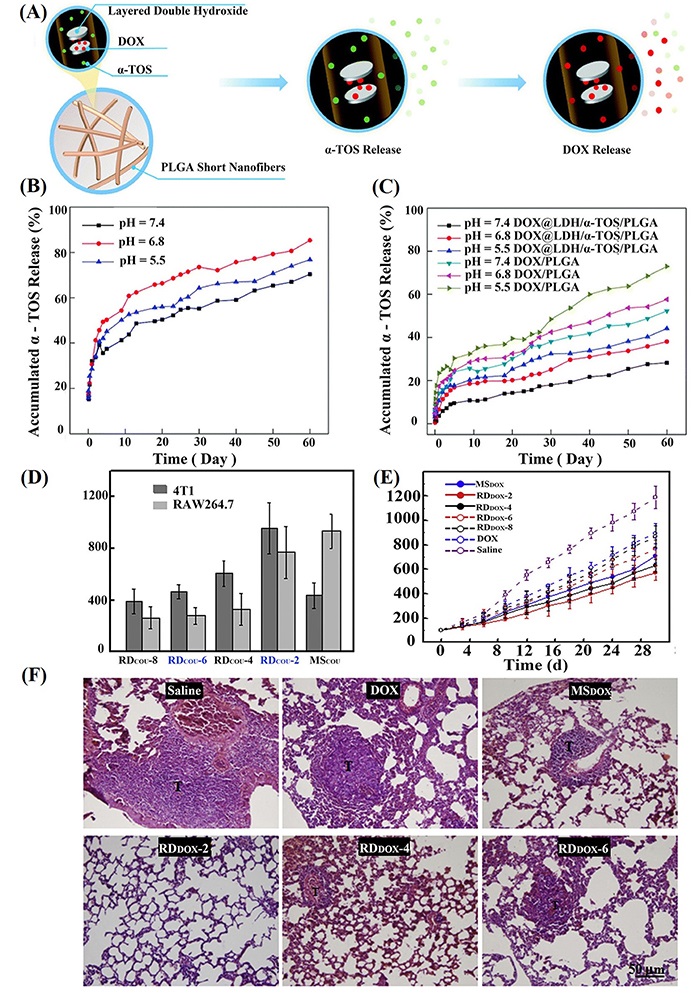

Preparation and drug release of drug-loaded SFs, as well as evaluation of in vitro and in vivo properties. (A) DOX@LDH/α-TOS/PLGA short nanofibers for the treatment of MDR cancer cells; in vitro release of α-TOS (B) and DOX (C) from the DOX/PLGA or DOX@LDH/α-TOS/PLGA short nanofibers with the same α-TOS or DOX amount; (D) the uptake amount of RD_COU with different lengths and MS_COU by 4T1 and RAW 264.7 cells, normalized to the total proteins of the cell lysate (n = 5); (E) tumor growth of 4T1 tumor-bearing mice after intravenous administration of free DOX, RD_DOX with different lengths and MS_DOX, using saline injection as the control (n = 6); (F) HE staining images of lung sections retrieved on day 21 after intravenous administration of free DOX, RD_DOX with different lengths and MS_DOX, using saline injection as the control. “T” represents metastatic tumors. HE: hematoxylin-eosin; MS_COU: coumarin-loaded poly (styrene-maleic anhydride; PSMA) microsphere; MS_DOX: DOX-loaded PELA microsphere; RD_COU: fiber rod containing coumarin; RD_DOX: DOX-loaded fiber rod

Note. Figure 3A, B, and C was adapted with permission from “LDH-doped electrospun short fibers enable dual drug loading and multistage release for chemotherapy of drug-resistant cancer cells,” by Ma Y, Li D, Xiao Y, Ouyang Z, Shen M, Shi X. New J Chem. 2021;45:13421–8 (https://doi.org/10.1039/D1NJ02159A). © The Royal Society of Chemistry and the Centre National de la Recherche Scientifique 2021. Figure 3D, E, and F was adapted with permission from “Shape effects of electrospun fiber rods on the tissue distribution and antitumor efficacy,” by Zhang H, Liu Y, Chen M, Luo X, Li X. J Control Release. 2016;244:52–62 (https://doi.org/10.1016/j.jconrel.2016.05.011). © 2016 Elsevier B.V.

In another work, Zhang et al. [36] loaded coumarin 6 into PSMA and obtained RD_COU by electrostatic spinning and ultrasonic crushing. At the same time, PELA was used to construct RD_DOX with different lengths. Then, MS_DOX and MS_COU with a diameter close to the fiber diameter were prepared by the lotion method. The authors investigated the effect of the shape of drug-loaded electrospun SFs on the efficiency of anticancer therapy [36]. As shown in Figure 3D, compared with RD_COU-2 and RD_COU-4, the uptake of MS_COU by 4T1 cells (a murine breast cancer cell line) is significantly lower. The uptake of MS_COU by RAW 264.7 cells (a murine macrophage cell line) is 2.5 times higher than those of RD_COU-4, RD_COU-6, and RD_COU-8, and slightly higher than that of RD_COU-2. In addition, in 4T1 and RAW 264.7 cells, RD_COU-6 and RD_COU-8 with a longer length have a lower cellular uptake, likely due to the large amount of energy required for the endocytosis of particles with a high aspect ratio. In vivo treatment of a 4T1 tumor-bearing mouse model reveals that the mice experience rapid tumor growth after 30 days in the saline group, showing a significant difference compared with the free DOX group. In comparison with free DOX, MS_DOX and RD_DOX significantly inhibit tumor growth due to the slow release of DOX from the microspheres and SFs to tumors, thus having increased DOX bioavailability (Figure 3E). In addition, compared with the saline group, the number of lung metastatic nodules in the MS_DOX and RD_DOX groups decreased significantly. Especially, there is no obvious tumor metastasis in RD_DOX-2 group, indicating that drug-loaded fiber segments with a shorter length possess a higher tumor cytotoxicity than the counterpart materials with a longer length (RD_DOX-4, RD_DOX-6, and RD_DOX-8 groups, see Figure 3F). That is to say, the preparation of effective drug carriers with improved tumor treatment efficacy can be achieved by varying the shape of SFs.

Tumor theranostics

Besides the therapeutic functions achieved, electrospun SFs can also be designed as a theranostic nanoplatform for simultaneous tumor imaging and therapy. In our recent work, we have shown that DOX-loaded electrospun PLGA microfibrous rings can be formed under a homogenization process in aqueous solution with a high ionic strength ([NaCl] = 2 mol L^–1), while under the same condition but without salt, only PLGA SFs can be formed [40]. The generated microfiber rings can be further decorated with PEI partially modified with Gd chelates and targeting ligand DNA Apt through the linkage of 3-(maleimido) propionic acid N-hydroxysuccinimide ester (NHS-Mal) between thiol end group of DNA Apt and the PEI amines (Figure 4A). The prepared microfiber rings have an average diameter of 11.1 μm and fiber diameter of 1.69 μm, possess good biocompatibility, pH-dependent long-term DOX release characteristics, and high r₁ relaxivity (4.46 mmol L⁻¹s⁻¹). The experimental results in vivo confirmed that the microfibrous rings can effectively inhibit the growth of tumors, and the therapeutic effect of the targeted group is better than that of the non-targeted group. As shown in Figure 4B, compared with the non-targeted group, the DNA Apt-functionalized fibrous ring (DOX@PLGA-PEI-Gd/Apt) can be retained in the tumor region for a long time so as to achieve MR imaging-guided tumor therapy (Figure 4C). Due to the anchoring effect of the microfibrous rings, simultaneous reduction of the shedding of tumor cells to form CTCs in the blood can also be achieved to simultaneously inhibit tumor metastasis.

Display full size

Figure 4.

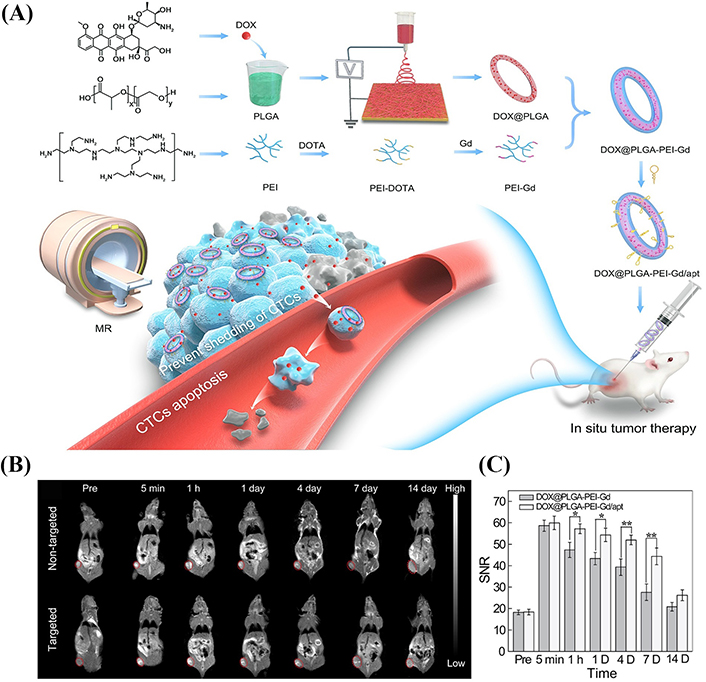

Preparation of drug-loaded PLGA fiber rings for MR imaging and tumor treatment. (A) Schematic illustration of the preparation and surface modification of DOX@PLGA fibrous rings for simultaneous tumor therapy and metastasis inhibition; (B) T1-weighted MR images; (C) the corresponding MR SNR of the 4T1 tumor before injection and at different time points post-injection of the DOX@PLGA-PEI-Gd and DOX@PLGA-PEI-Gd/Apt ([Gd] = 5 mmol L^–1, in 100 μL NS for each mouse), respectively (mean ± SD, n = 3). The tumor region was tagged with red dotted circles. The MR signal intensity of blank (air) was used as the background (noise). DOTA: 1,4,7,10-tetraazacyclododecane-1,4,7,10-tetraacetic acid; NS: normal saline; SD: standard deviation; SNR: signal-to-noise ratio

Note. Adapted with permission from “Multifunctional PLGA microfibrous rings enable MR imaging-guided tumor chemotherapy and metastasis inhibition through prevention of circulating tumor cell shedding,” by Xiao Y, Fan Y, Tu W, Ning Y, Shi X. Nano Today. 2021;38:101123 (https://doi.org/10.1016/j.nantod.2021.101123). © 2021 Elsevier Ltd.

The 2D microfibrous rings have been demonstrated as a powerful platform for tumor theranostics. In order to further improve the tumor theranostic efficacy, 3D microspheres composed of short electrospun PLGA nanofibers have been prepared for local tumor drug delivery and MR imaging in our recent work [41]. First, electrospun PLGA fibrous mats prepared were homogenized to obtain the PLGA SFs, which were then covalently linked with DTPA-PEI conjugate. Followed by Gd³⁺ chelation and HA surface modification, multifunctional PLGA-PEI-DTPA-Gd/HA SFs were obtained. Then, an aqueous dispersion containing 0.1 wt% gelatin, PLGA-PEI-DTPA-Gd/HA SFs, and DOX were electrosprayed and cross-linked to create the multifunctional drug-loaded microspheres [DOX-PLGA-PEI-HA (PGH), Figure 5A]. The prepared DOX-PGH microspheres were comprehensively characterized to have a fiber diameter of 1.7 μm and a whole size of 118.8 μm, respectively, and r₁ relaxivity of 17.7 mmol L⁻¹s⁻¹, nearly four times higher than that of Magnevist (4.56 mmol L⁻¹s⁻¹). Meanwhile, the DOX-PGH microspheres show a sustained DOX release profile to achieve accumulated DOX release of 52.2% at 120 h, thus facilitating long-term tumor local drug delivery applications. With the HA-mediated targeting and anchoring to tumor cells overexpressing CD44 receptors, the developed DOX-PGH microspheres enabled targeted tumor MR imaging with imaging contrast enhancement lasting for 5 days (Figure 5B). These results strongly proved that the prepared HA-functionalized fiber microspheres could stay at the tumor site for a long time and be more firmly anchored to the tumor cells through HA binding to the CD44 receptor on the tumor cell surface, which is conducive to DOX accumulation at the tumor site and tumor metastasis inhibition. After local treatment, the tumor volume of mice in the DOX@PGH group is smaller than other groups, indicating the best anti-tumor effect of DOX@PGH (Figure 5C), along with the best inhibition of lung metastasis as reveals HE staining. Overall, the developed DOX@PGH can be used as a promising local drug delivery system with long-term local chemotherapy, tumor metastasis inhibition, and MR imaging functions.

Display full size

Figure 5.

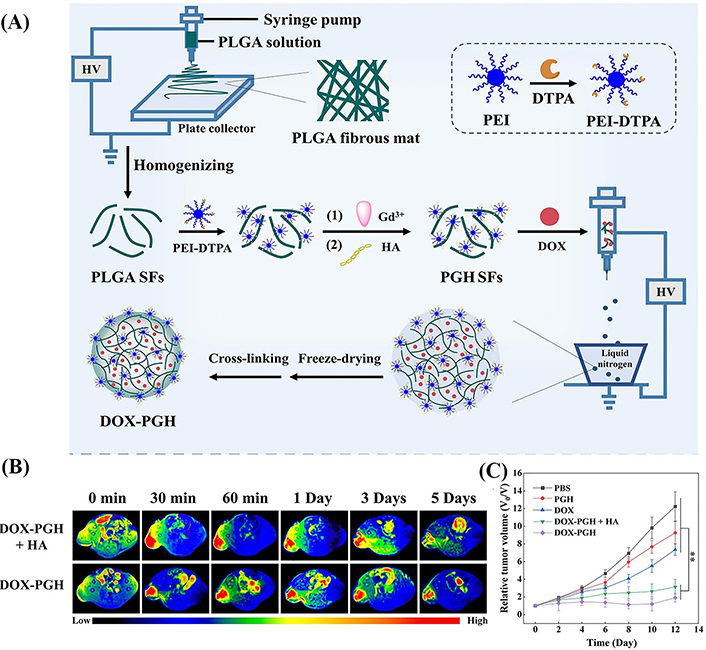

The synthesis route and in vivo treatment efficiency of drug-loaded fiber microspheres. (A) Schematic diagram of the preparation of DOX-PGH microspheres; (B) T1-weighted MR images of 4T1 tumors at different time points postinjection of DOX-PGH + HA or DOX-PGH; (C) relative tumor volume of 4T1 tumor-bearing mice as a function of time post-treatment in different groups (n = 6). PBS: phosphate buffered saline

Note. Adapted with permission from “Tumor-anchoring drug-loaded fibrous microspheres for MR imaging-guided local chemotherapy and metastasis inhibition,” by Zhang B, Gao Y, Yang R, Ouyang Z, Yu H, Wang H, et al. Adv Fiber Mater. 2022;4:807–19 (https://doi.org/10.1007/s42765-022-00137-8). © 2022, Donghua University, Shanghai, China.
