Introduction

Facial pain syndromes can be very difficult to manage and often require a multidisciplinary approach [1]. Trigeminal pain, especially trigeminal neuralgia, is the most common form of facial pain [2]. Medications could lead to pain control in 90% of patients with essential trigeminal neuralgia but other types of trigeminal pain, such as trigeminal neuropathic pain and atypical facial pain, are less responsive to medical treatments [3]. Neuromodulation represents a significant opportunity for better management of chronic refractory trigeminal pain but, to date, there are no neuromodulation devices commercialized specifically for facial pain syndromes [4]. Curiously, the earliest recorded use of neurostimulation was for facial pain in 1962 by Shelden, who performed mandibular branch neuromodulation years before the publication of the gate theory and spinal cord stimulation [5]. Gasserian ganglion (GG) stimulation by percutaneous approach is less invasive than the open surgical approach by craniotomy, and it has been optimized by the use of computed tomography (CT) based electromagnetic neuron avigation guidance for easier cannulation of foramen ovale [6]. Given the complex anatomy of the GG and its proximity to delicate structures, anatomical landmarks play a crucial role in percutaneous procedures through the foramen ovale, ensuring both precision and safety [7, 8].

Although there are good results in terms of pain relief, the GG neuromodulation technique to reduce the type and frequency of complications remains unknown [9]. In addition, tunneling of the leads through the facial tissue to the implant site remains a challenge due to the aesthetic outcomes and post-implant pain in a region already afflicted by intractable pain [4].

The present study aimed to compare two different tunneling techniques for GG stimulation and report whether there were associations between the type and rate of complications.

Materials and methods

The local Ethical Committee of Vitaz (Sint-Niklaas, Belgium) approved the study (EC22022). An informed consent form was not required due to the retrospective observational nature of the study. This was a retrospective analysis of medical records of all patients with refractory facial pain, who underwent GG stimulation at Multidisciplinary Pain Center of Vitaz between January 2010 and June 2022. A retrospective chart review was performed to obtain demographic information, facial pain history, and symptoms, imaging, history of previous surgeries, time and technique of GG stimulation, outcomes, and complications. All patients older than eighteen years old who underwent GG neuromodulation during the study period were considered.

Surgical technique

These patients were implanted with a custom-made tripolar, bent, tined lead, developed by Van Buyten in collaboration with Bakken Research Center Medtronic (Model 09053) (Figure 1). The lead is not commercially available worldwide and it has to be used off-label [compassionate use approved by the Federal Agency for Medicines and Health Products (FAMHP) of Belgium].

Display full size

Figure 1.

Medtronic lead model 09053. The three tines were developed to have a greater grip on tissues and prevent dislocation. Reprinted from “Logghe Y, Smet I, Jerjir A, Verelst P, Devos M, Van Buyten JP. Trigeminal neuropathy: Two case reports of gasserian ganglion stimulation. Brain Behav. 2021;11:e2379.”. CC BY. https://doi.org/10.1002/brb3.2379

The procedure consists of a two-step surgery, the first of which is called the trial period. During the trial period, an electrode was placed into the foramen ovale near the GG using a percutaneous technique and connected to an external pulse generator. The procedure was performed under sedation, local anesthesia, and with antibiotic prophylaxis coverage. As a pre-treatment work-up, a head CT was acquired to guide needle placement into the foramen ovale using a coupled electromagnetic neuronavigational system. The needle, similar to those used for selective percutaneous thermocoagulation, was 15 gauges and was inserted about 2.5 cm lateral to the labial commissure. A small incision was made next to the entry point [12]. The needle was then guided by 3D real-time electromagnetic tip tracking system (Medtronic StealthStation™ S7 surgical navigation system) into the foramen ovale [13]. After passing through the foramen, the needle was advanced further until the tip had reached the clivus level. At this point, the electrode was inserted through the needle under continuous fluoroscopy until the tip also reached the level of the clivus (Figure 2).

Display full size

Figure 2.

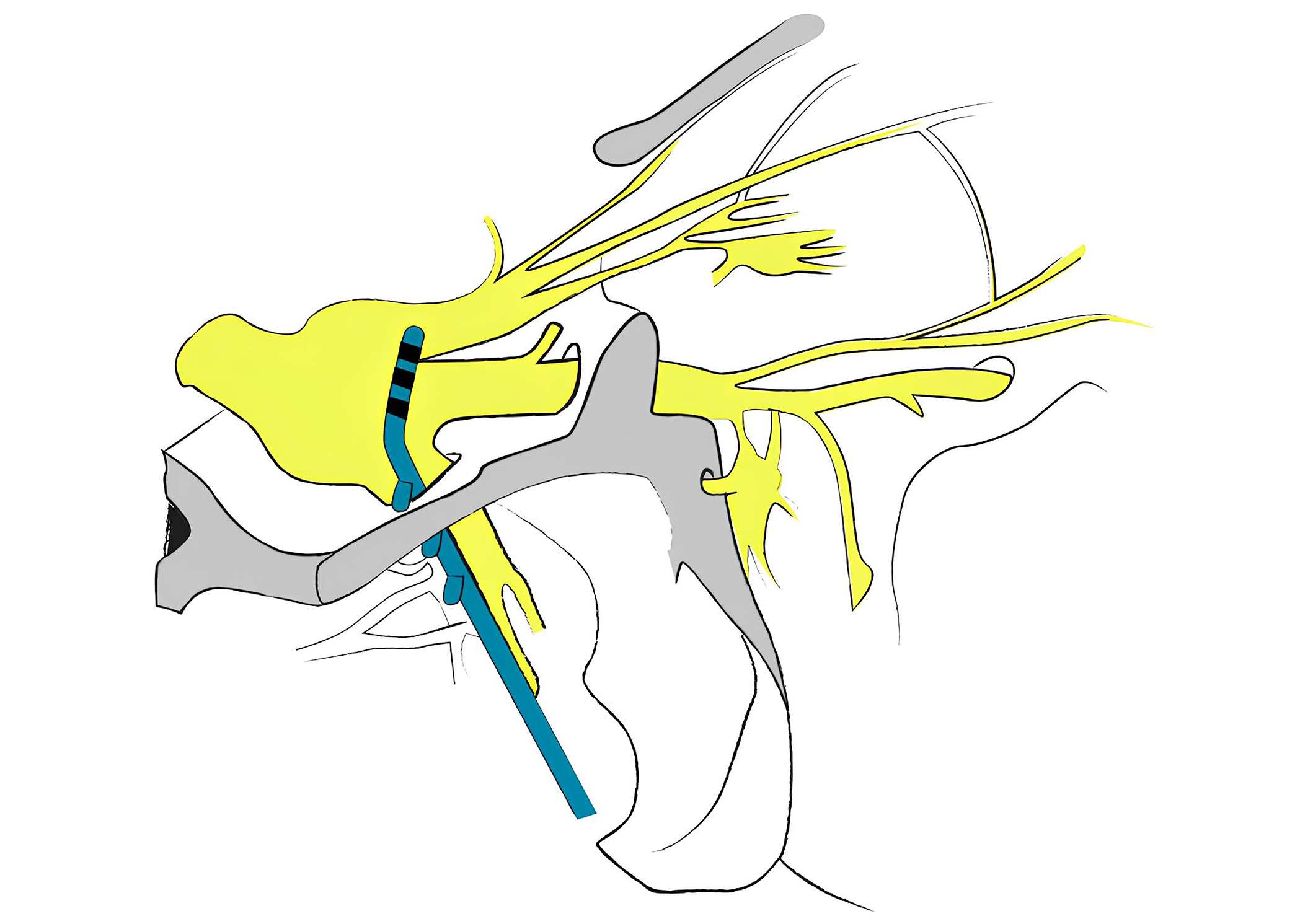

Graphic illustration showing the positioning of the lead and how its tines work

The lead (Model 09053) had a diameter of 1.24 mm and until 2015 a length of 40 cm. Since 2016, the length has been changed to 70 cm. Then, a stimulation test was performed, and the electrode was gently moved to get a correct response from stimulation and a correct imaging position. Once a satisfactory position had been achieved, the needle was withdrawn under fluoroscopic control and the electrode was secured with stitches at the entry point. While the electrode was secured with a suture, the patient was deeply sedated for added comfort. From 2010 to 2015, the lead was tunneled behind the ear up to the neck. Thus, the electrode was then tunneled subcutaneously between the maxilla and mandibular region, and a second suture was made in this preauricular position. A third small incision in the upper portion of the neck was made where the lead was tunneled [12]. Here a temporary extension cable was connected to the lead and secured in this small subcutaneous pocket. The temporary extension cable has now been connected to an external pulse generator. From 2016 to 2022, the lead was inserted by passing through the insertion site and down directly through the neck using a tunneling tool. A pocket was created at the infraclavicular level where the connection between the electrode and the extension cable was placed. The extension cable was then connected to an external pulse generator (Figure 3 and Figure 4). The day after the trial implant patients were discharged, and an external battery was reprogrammed to be able to administer the most suitable therapy. In addition, during the trial period, the patients had a remote controller which allowed them to adjust the stimulation parameters. A confirmatory imaging of the correct lead positioning was obtained before discharge. The trial period was approximately one month for each patient if no complications occurred. Four patients were implanted without an external battery trial period because they had already an implanted battery for other neurostimulation therapies. If the trial period was successful, a permanent implant was performed, and the second step of the surgery was performed, this time under general anesthesia for better patient tolerance. An internal pulse generator (IPG) was inserted into a subcutaneous pocket made in the patient’s body and connected with an extension cable. The previous small subcutaneous pocket, where the provisional external extension cable was connected to the lead, was reopened, and the extension cable was removed. At this point, an internalized extension wire was connected to the lead and tunneled up to the pocket, which was made in the infraclavicular fossa. In two patients the battery was placed in the abdominal region while in one patient on the flank. The reason was that two of these patients already had an implanted battery, while the other did not want to have the battery implanted in the infraclavicular region.

Display full size

Figure 3.

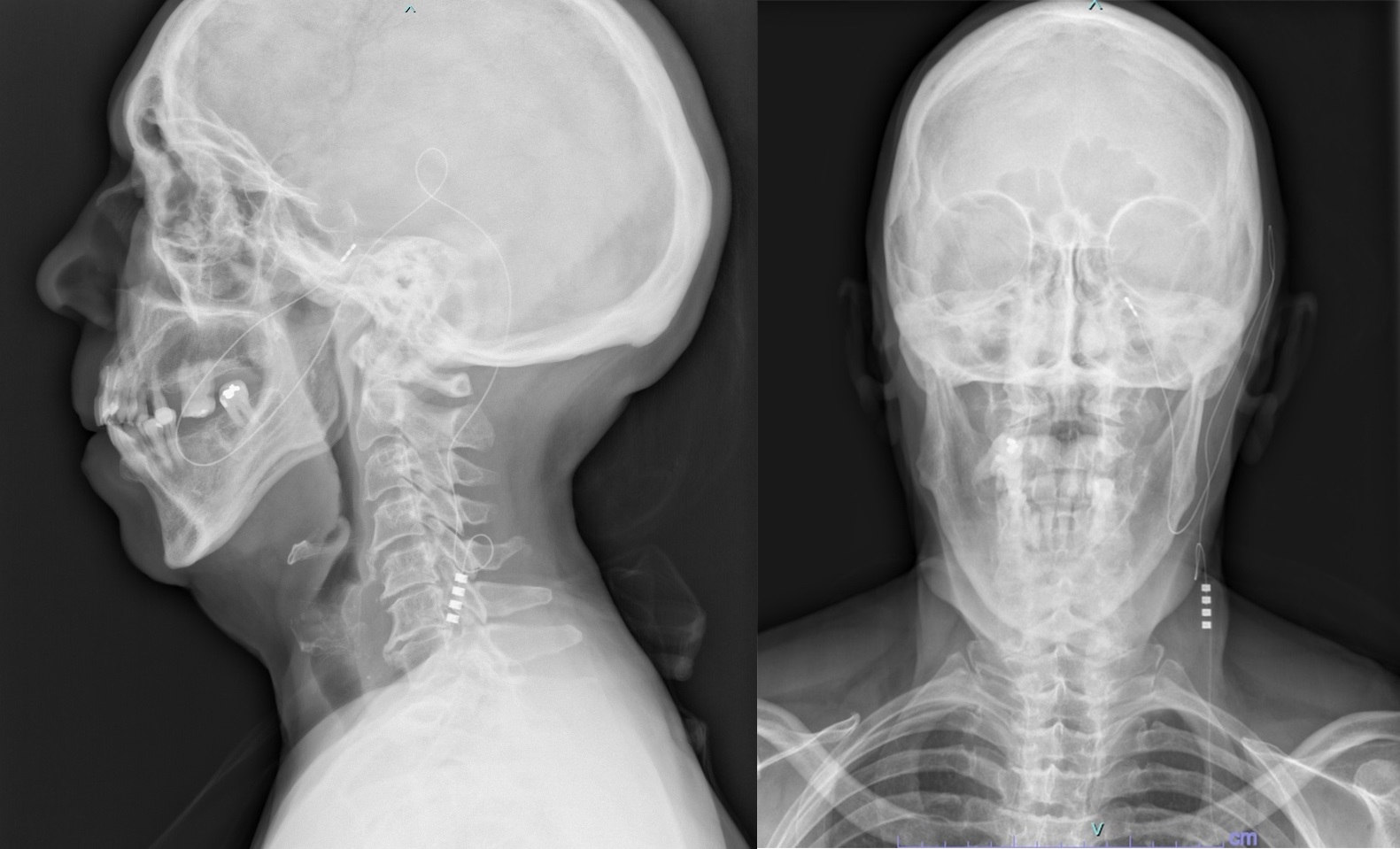

Ear tunneling technique

Display full size

Figure 4.

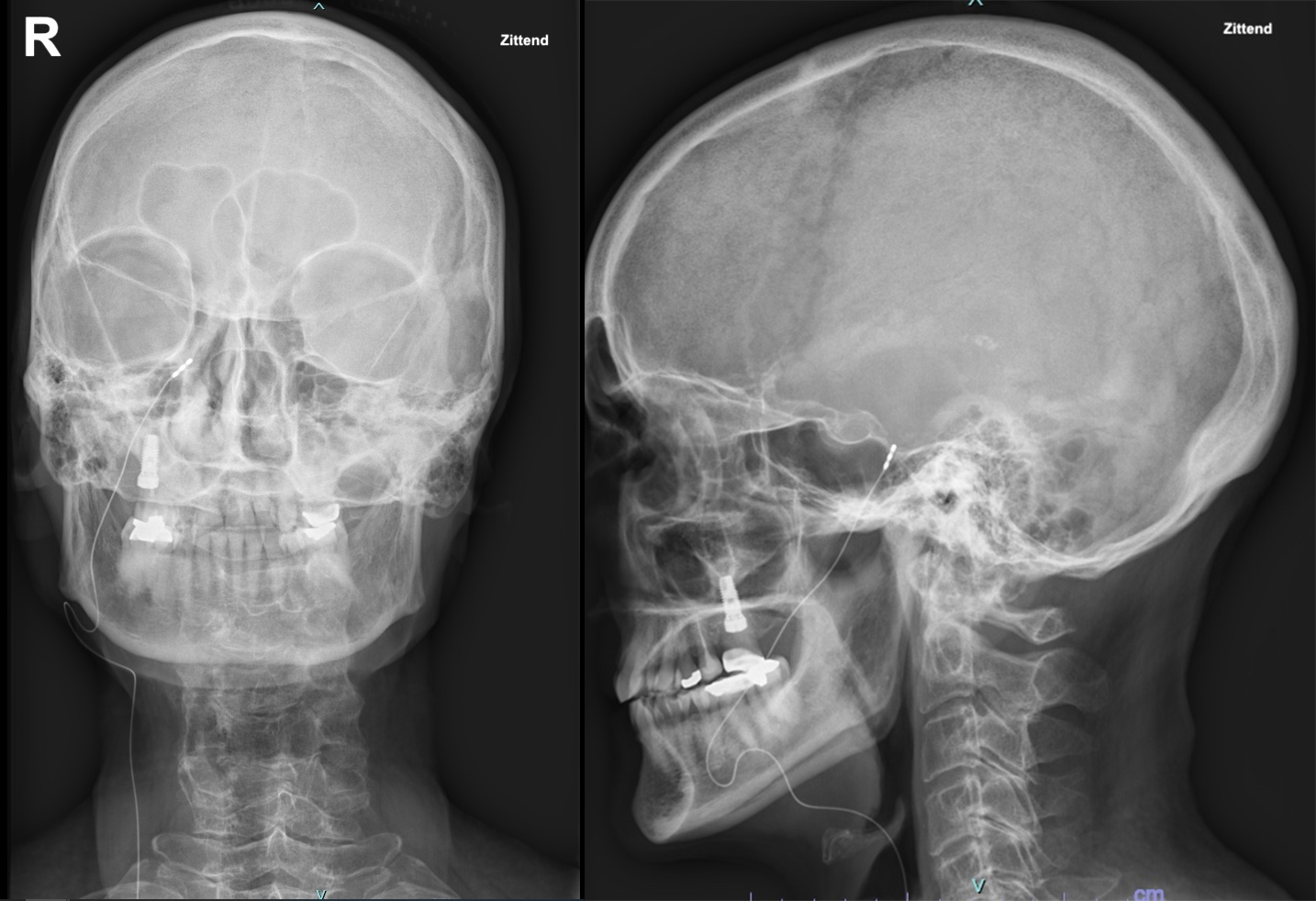

Direct tunneling technique

Results

Our cohort consisted of 49 patients (32 women and 17 men) aged from 32 to 76 (mean 56 ± 21) undergoing GG stimulation for the treatment of chronic facial pain. Most patients complained of trigeminal pain on the right side (53% right vs. 43% left). Only two patients presented trigeminal neuropathic pain on both sides: one was implanted on both sides while the other didn’t undergo the procedure because he did not tolerate paresthesia. The trigeminal branch most often involved in pain symptoms was V3, with a prevalence of 79% of patients (Table 1). Post-traumatic trigeminal neuropathic pain was present in 28 patients, thus 56% of the cohort, while 12 patients suffered from trigeminal pain after dental procedures. A total of 24 patients developed trigeminal pain after interventional procedures and four after traumatic injury. Only one showed trigeminal neuropathy in a sclerosis syndrome, while only two had trigeminal neuropathic pain after Varicella Zoster (Table 2). A greater number of patients with non-traumatic pain etiology (16 out of 21) received a permanent implanted GG stimulator, as compared to those with traumatic pain etiology (19 out of 28). However, there was no statistically significant association between pain etiology and permanent implant (Yates’s Chi-squared test, p = 0.950).

In this study, only major complications were considered, with no inclusion of minor complications, such as those resolved with reprogramming.

Over an average follow-up duration of three years, 36 complications were observed, with 23 patients experiencing at least one complication. Among these patients, only 39% experienced a second complication, and only one patient developed more than two complications. None of the complications resulted in permanent disability or death, and all of them were resolved. Conservative treatment resolved five complications, while surgery was necessary for the rest (Figure 5).

Display full size

Figure 5.

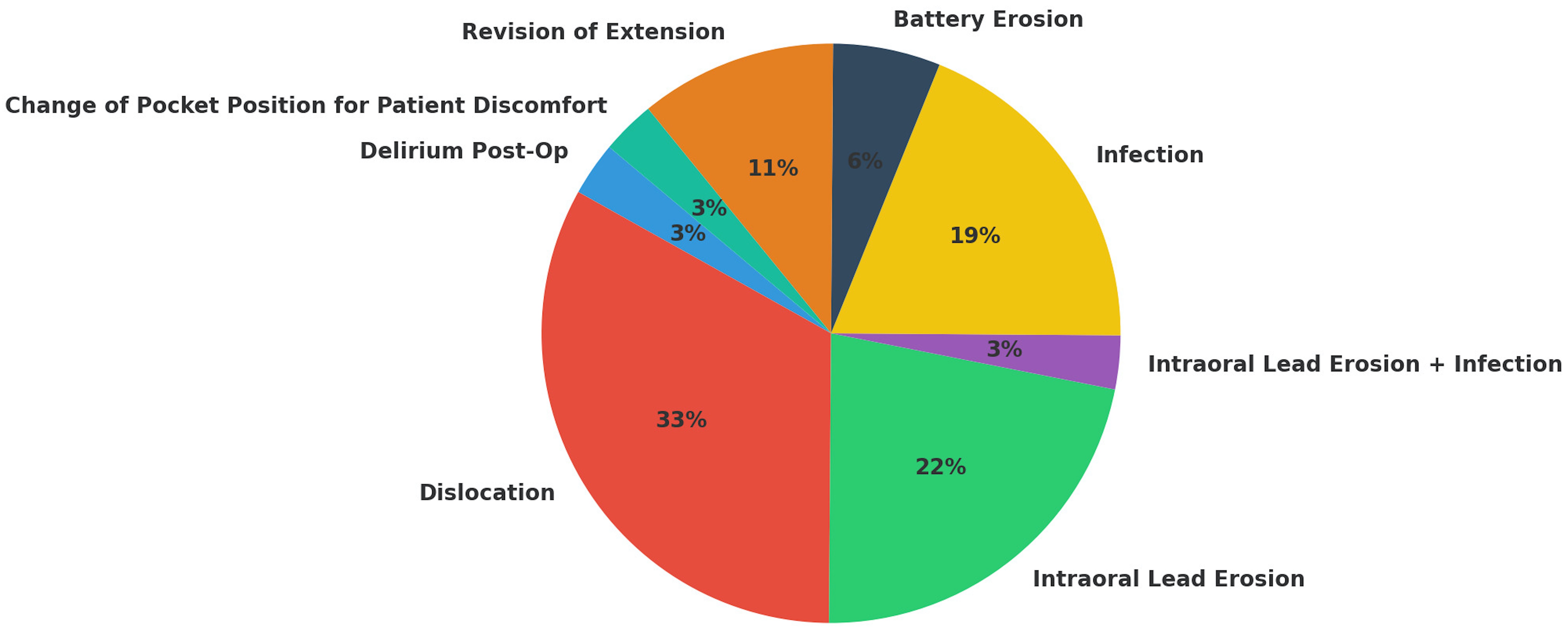

Descriptive analysis of complications (n = 36) occurred

Comparison between the two different tunneling techniques

In our cohort of patients, we can identify two subgroups based on the tunneling technique used. A tunneling technique, which included passing the lead behind the ear, was used for 20 procedures. The insertion of 30 leads was instead carried out using a tunneling technique in which the lead was tunneled directly from the mandibula to the neck. We compared these techniques in terms of complications, and we saw that there is no statistically significant difference between the type of tunneling technique used and complications (Fisher exact test value 0.567, p = 0.451). Moreover, there is no statistically significant difference between the type of complications and the tunneling technique used (Fisher exact test, p = 0.181). The only noteworthy difference was in the group of the ear tunneling technique where we found a complication which is not present in the other group, the revision of the extension cable. This type of complication appears 4 times in the ear tunneling technique. Most complications occurred in the first year of follow-up in both groups (75th percentile 231–241 days) (Figure 6).

Display full size

Figure 6.

Box plot shows the correlation between time and the development of the first complication in our cohort of patients

Permanent implantation

Out of 50 trials of GG stimulation, 35 ended with the permanent implant. The rate of successful trial stimulation reported in our study (70%) follows previously published data, which ranges between 47%–80% [14]. Considering only those patients who underwent IPG implantation, we can observe that 11% of patients had electrode explants within one year of IPG implant, another 11% of patients in the second year, another 6% of patients in the third year, and only one patient (corresponding to 3%) in the fourth year (Figure 7).

Display full size

Figure 7.

Kaplan Meier survival curve shows the trend of 35 patients with definitive implantation over time. The event considered is the implant removal. On the x-axis, time is expressed in days
