The makeshift angiogenesis

As cancer cells would initially begin with minimal numbers, they would usually survive on shared oxygen and nutrients from the host’s existing blood vessels. However, as the number of cancer cells gradually increases, the cumulative larger number of cancer cells would naturally require an induction of new blood vessels so as to obtain their own share of oxygen and nutrients. Actually, the induced blood vessels are usually makeshift in nature and mostly too porous or leaky due to poor quality pericytes [6, 7]. Intriguingly, cancer cells can exploit such makeshift blood vessels to their own advantage. Actually, cancer cells can readily thrive in such very inadequate environments even better than normal cells. Moreover, such poor environments would render a hypoxic and acidic surrounding which also has excessive lactates due to anaerobic glycolysis (Table 1). This very hostile environment would even serve to suppress host immunity. In any case, with the leaky vessels unable to deliver adequate host immune cells, the cancer cells can thus thrive happily. Taken together, the tumor environment would preclude most normal functions of host cells. Moreover, as the so-called “aerobic glycolysis” means cancer cells can readily switch to the glycolysis cycle even in the presence of oxygen (unlike normal cells that would only have anaerobic glycolysis cycles) it would actually be futile to “starve” cancer cells by glucose deprivation, especially as the TME actually has many “plan Bs” and “plan Cs”, and ample viable alternative pathways in case one particular pathway fails. Apparently, only a multi-target approach could overcome the very evasive TME more effectively.

The TME: deemed to be the worst culprit for cancer resistance

Despite the well-established necessity for oxygen, how living cells actually sense hypoxia has only been discovered in the late 1990s, with the 2019 Nobel Prize in Physiology or Medicine going to William G. Kaelin Jr., Sir Peter J. Ratcliffe, and Gregg L. Semenza [11]. Their discoveries centered on the HIF: a vital transcription factor that regulates gene expression while responding to hypoxia. Notably, hypoxia induces angiogenesis through various HIF mechanisms. Importantly, in response to hypoxia, metabolic adaptations of cancer cells by HIF-1, e.g., switching from oxidative phosphorylation to glycolysis and also metabolizing glutamine (in preference to glucose) for lipid synthesis, a drop in extracellular pH would then occur. All of these are actually involved in enhancing tumor progression and even during metastasis. Notably, HIF-1 also plays a vital role in the immune response: its induction is crucial for the infiltration and activation of myeloid cells. Moreover, HIF-1α regulates the rather delicate balance between Tregs and T helper 17 (Th17) (pro-inflammatory) cells. Rather similar to cancer cells which adapt their metabolism to hypoxia, the HIF-1α-dependent metabolic switch to glycolysis may promote production of Th17 cells but would effectively suppress Treg generation. The various regulatory pathways involved during hypoxia are reviewed by Ziello and colleagues [8]; a schematic representation of molecular events is in Figure 1. Admittedly, as these related molecular events are rather complex, further schematic representations to illustrate the most salient features are in Figures 2 and 3.

Display full size

Figure 1.

Schematic diagram of the main molecular event upon hypoxia. HIF-1α + HIF-1β + HREs would activate the transcription of downstream genes [12]. * FIH: factor inhibiting HIF [13]; ** p300/CBP: p300/CREB binding protein (transcriptional coactivators) [14]; *** HREs: hypoxia-response elements; “↓”: inhibited; “+”: added on

Display full size

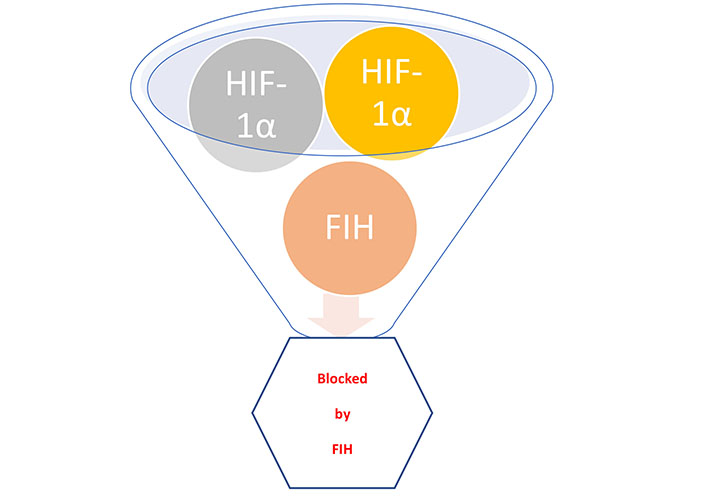

Figure 2.

HIF-1α blockade. In normoxic environments, HIF-1α is blocked by FIH [15]

Display full size

Figure 3.

Scheme of CTLA-4 blockade. Tumor cells “hijack” immune checkpoints to disable host immunity. Illustrated are the schemes of an APC attempting to present tumor-associated antigens to T cells. However, with normal immunity, the CD28 co-activating receptors on T cells would be bound to B7 proteins on APCs except for the checkpoint braking effect, e.g., by CTLA-4. When CTLA-4 binds to B7, the host immunity effect is disabled. Upon administering an anti-CTLA-4 (an ICB), the effect would be reversed, i.e., no more braking effect as B7 is now bound to CD-28 again, clearly to the tumor cells’ great disappointment [16]. APC: antigen-presenting cell; CTLA-4: cytotoxic T-lymphocyte-associated-4; “↔”: binding to

The TME is now recognized to be an extremely resilient, smartly evasive and highly resistant “haven” for cancer cells. Without adequate TILs, these tumors are actually too “cold” to have any adequate response to ICBs: the main reason why ICBs fail [17, 18]. As leaky vessels also lead to high interstitial fluid pressures, the TME is thus characterized by hypoxia, acidity, and high interstitial fluid pressures. Remarkably, low-dose anti-VEGF agents, e.g., bevacizumab have been found to render vessel normalization for the makeshift tumor vasculature. This may effectively overcome hypoxia and increase the bioavailability of drugs, let alone facilitating the trafficking of antitumor immune cells [19–22]. Actually, these antiangiogenic agents have also been tried clinically before the debut of ICBs. Despite the makeshift vasculature giving rise to hypoxia, acidity, and high interstitial fluid pressures [7], hopefully, a skillful administration of these antiangiogenic agents would not only render the unique effect of normalizing the vasculature but also boost the response rates of ICBs [17]. One of the most effective anti-VEGFs, e.g., bevacizumab, is a potent antiangiogenic agent (see below). The function of anti-VEGF agents is not just to inhibit the formation of new blood vessels but also to function even more appropriately to normalize disorderly blood vessels [19, 23].

Interestingly, the inadequacy of pericytes rendering makeshift tumor vessels too porous for effective perfusion is actually similar to that of cerebral edema, as induced by “secretive meningiomas” [24, 25]. Although the detailed pathophysiology of cerebral edema remains to be elucidated [24], evidently, leaky vessels would occur within the brain, especially after head injury. Apparently, secretory meningiomas patients would have their blood vessel pericytes indirectly affected and cerebral edema occurred well beyond the meningiomas. On microscopy, these meningiomas were found to have abnormal pericytes [25]. Apparently, the peculiar pathophysiology of these secretory meningiomas was closely related to pericytes and the subsequent diffused, “oversized” cerebral edema was actually out of proportion to the actual much smaller size of those meningiomas.

Moreover, as poor perfusion leads to hypoxia and, in turn, attracts cells like MDSCs, also known as the “queen bee” of the TME [10] as well as other related cells, e.g., TAMs and Tregs. Unfortunately, these cells in unduly hypoxic environments may also secrete growth factors and anti-inflammatory cytokines that have profound immunosuppressive effects including increased expression of programmed death-1 (PD-1) receptors, let alone the induced HIFs would promote PD-1 receptors [26, 27]. Ultimately, cancer-associated fibroblasts (CAFs) develop: they not only enhance tumor invasion and dissemination but also promote cancer cell proliferation, let alone contributing actively to tumor resistance.

Enhancement by ChT or antiangiogenic agents

Although theoretically, ICBs are designed to inhibit specific immune checkpoints, clinically, the response rates are too low to benefit most cancer patients, i.e., tumors are too “cold” to respond, as alluded to above. Occasionally, chemotherapeutics or antiangiogenic agents are combined with ICBs to boost response rates. However, there are considerable limitations, as have already been described by Tsao [28]. Briefly, for TKIs, there may be a problem with adverse events upon combining, e.g., lymphocytopenia and excessive interstitial pneumonitis that had rendered some combination trial suspensions; eventually, resistance may also ensue. Moreover, the usual dose of ChT may be too high and could even suppress immunity rendered by ICBs. Appropriately, for the combination, mChT appears more appropriate. Although high-dose antibiotics are often successful, e.g., for serious bacterial infections, maximum tolerated dose (MTD) cancer ChT can hardly achieve equivalent success. Currently, this discrepancy is recognized to be due to the notoriously resistant TME. Actually, ChT may also induce immunogenic cell death (ICD) [29] and may even enhance ICBs, especially mChT (less suppressive effect on induced immunity) is employed.

On the other hand, although antiangiogenic agents, especially anti-VEGF ones, are originally designed to prune the tumor’s neo-vasculature, they have recently been found to render normalization of the makeshift tumor vasculature by pruning mainly abnormal vasculature but leaving the good ones behind. The proviso is that the low-dosage is used. Although the labeled dosage of, e.g., bevacizumab (15 mg/kg) works best for pruning neo-vasculature, for vessel normalization, a low-dosage is much more appropriate [6, 19, 23]. This is also in line with personal and other published experiences (see below). Desirably, the best blood vessel normalization is to render a “cold” tumor “hot” through a better influx of TILs to it.

Possible enhancement by low-dose bevacizumab

Although the pathophysiology of cerebral edema is complex (as alluded to), apparently, pericyte abnormality is indirectly associated with leaky blood vessels in cerebral edema. In clinical practice, early cerebral edema would usually respond to steroids or osmotic agents (e.g., mannitol). However, for resistant cases, although novel agents have now been proposed, clinically, the personal anecdotal experience incidentally tallies with published ones that low-dose bevacizumab usually works surprisingly well even for those resistant cerebral edema cases [30–32]. Admittedly, off-label drug prescription is to be discouraged, except the prompt and effective relief of these resistant cerebral edema cases by low-dose bevacizumab appears monumental. However, robust clinical trials on such a particular effect are difficult, due to the rarity of these cases. Remarkably, such anecdotal clinical experience may serve to verify that low-dose bevacizumab may well be highly effective for leaky blood vessels that are characteristic of cerebral edema [24]. Realistically, the labeled dose of bevacizumab (15 mg/kg) is for pruning neo-vasculature but the off-label dose (7.5 mg/kg) is for normalizing vasculature to reduce the interstitial fluid pressure so useful for managing the TME.

The price of enhancement

Despite the “bonus” effect of off-label anti-VEGF agents, i.e., bevacizumab that may render normalization of makeshift vasculature, the survival rates achieved by these monotherapy anti-VEGF agents have not been impressive [33]. This is likely to be due to the TME’s very remarkable evasiveness and ample alternative escape pathways. Although combining anti-VEGF agents with ICBs would enhance the response rates, unacceptable side effects usually ensue, as reviewed by Tsao [28]. Notably, even though more novel TKIs, e.g., sorafenib also have antiangiogenic effects, they are usually less potent than anti-VEGF agents.

Recently, for hepatocellular cancer (HCC, an aggressive cancer), an anti-VEGF agent (bevacizumab 15 mg/kg) was added to atezolizumab (an ICB) to achieve higher response rates and longer survivals [34] in the IMbrave150 Trial for unresectable HCCs. However, compared with sorafenib, despite achieving a superior median overall survival (longer by 5.8 months) with the combination than monotherapy sorafenib [35], adverse effects were also considerable, as the bleeding had occurred in as many as 1/4 of patients upon combination. Retrospectively, as high-dose bevacizumab is associated with a higher bleeding rate, low-dose bevacizumab might be a better alternative.

For advanced renal cell carcinoma (RCC) patients, nivolumab (an ICB) plus cabozantinib (a multi-kinase inhibitor) is already approved for first-line treatment of RCC patients, based on the randomized CheckMate 9ER Trial for treatment-naïve but advanced RCC patients [36]. Actually, despite a better response rate of around 50% (0% for the chromophobe sub-type), some of the most common adverse events of the combination arm were palmar-plantar erythrodysesthesia (redness, swelling, and blistering of the hands and feet; 40%), hypothyroidism (34%) [37]. Unfortunately, there is a significant price to pay for these better response rates.

Microbiota posing as “non-toxic enhancer”

Recently, it has been advocated that, perhaps combination of ICBs with gut microbiota agents may enhance ICBs and have much less adverse effects. Although pre-clinical studies of oral Bifidobacterium have been found to have significant cancer immunotherapy effects [38, 39], robust clinical trial results are required to confirm the results. Yet, the field of onco-microbial science is only just commencing [40]. Notably, fecal microbiota transplantation (FMT) is deemed as much more effective for immune enhancement and even considered as the “last resort” remedy, e.g., for resistant Clostridium difficile infections [41]. However, the Food and Drug Administration (FDA) has not approved FMT for any indication, even though it has been advocated for patching up ICB’s deficiencies (both low response rates and immune-related adverse events (irAEs). Apparently, FMT remains to be better developed as its immune-mediated mechanisms have yet to be well established [42]. Lastly but not the least, during this pandemic, the transmission of various infections (especially viral ones) through feces raises the most concern [43]. Notably, severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) shedding may persist despite both clinical manifestations and nasopharyngeal swabs are negative. Thus, the risks of infections through FMT are actually real especially as clearly, some stool banks screen less carefully than others for diseases possibly transmitted by FMT [44].

Possibility of reducing IREAs of ICBs

For adverse events of ICBs, especially irAEs, various agents are tried, most commonly steroids [45]. Disease-modifying anti-rheumatic drugs (DMARDs) might occasionally be considered but due care and concern should actually be taken and preferably, the use of DMARDs for ICB’s irAEs should actually be a joint consultative effort with a rheumatologist [46]. Although most irEAs of ICBs may be mild, some are definitely life-threatening, e.g., interstitial pneumonitis and these would usually demand immediate ICB discontinuation. Despite the availability of all these management tactics for irAEs, ICBs may have to be suspended upon the failure of all these management tactics.

Interestingly, in mainland China, TCM herbs are now actively being researched for the potential of reducing irAEs of ICBs, e.g., total glucosides of paeony and Tripterygium wilfordii glycosides (TWG) from Tripterygium wilfordii Hook F (TwHF) [47, 48]. As China’s State FDA (SFDA) has already approved total glucosides of paeony for rheumatoid arthritis [49] and TWG for Crohn’s disease, rheumatoid arthritis, and ulcerative colitis [50], these herbs are being actively studied for managing irAEs of ICBs. Notably, an important advantage of these herbs is the wide therapeutic index of TCM herbs, so the administration of these herbs for managing ICB’s irAEs may well be simpler than DMARDs. Anyway, it is already a well-known fact that in mainland China, using TCM to reduce the side effects of Western medications is rather commonplace.

China’s two parallel medical systems benefit oncology

In mainland China, the state strategy is for both Western medicine and TCM streams to run in parallel to each other [51]. For oncology services, as medical linear accelerators (linacs) are usually considered essential for delivering modern radiotherapy, looking at the provision of linacs may give an idea on the adequacy of provision of oncology equipment. Currently, with a population of 1.4 billion, China may appear to have a suboptimal number (2,000) of linacs. Admittedly, this number is below the World Health Organization (WHO)’s requirement recommendation of 2-3 linacs/million population [52]. Moreover, China’s 1.42 linacs/million population actually compare very unfavorably with that of USA (11.4 linacs/million population). Most surprisingly, people in mainland China are hardly complaining about the inadequacy of linacs. Apparently, the provision of two parallel medical systems works well. Notably, both available systems are providing satisfactory and roughly equivalent oncology services. Thus, in mainland China, TCM is not only well respected but also has a good track record. Even in Hong Kong where the Government still maintains a priority on Western medicine, TCM is still considered as a good “second best”. Admittedly, TCM has an extremely long history of 3,000 years and is still trusted in mainland China. Finally, in perspective, the definition of TCM actually also comprises of some other modalities, e.g., acupuncture, moxibustion, acupressure, herbal poultice, “gua sha” massage (scraping to produce light petechiae), and cupping [53].

Contribution to oncology

Although TCM especially for oncology has been criticized as “unscientific” or “imprecise”, during recent decades, more and more scientific reports validating the scientific basis of TCM have been published.

Remarkably, in 1997, China’s SFDA had already approved the use of Kanglaite (extracted from the Chinese herb, Coicis semen yokuinin) for HCCs and non-small cell lung cancers (NSCLCs) resistant to ChT. Intriguingly, this was long before the debut of anti-epidermal growth factor receptors (anti-EGFRs) in the early 2000s. It was unfortunate that anti-EGFRs had an adverse event of a hitherto unrecognized but rapidly fatal pneumonitis coined as interstitial lung disease (ILD). In Japan, with heavy use of anti-EGFRs for NSCLCs, it had even caused a significant social problem [54–56]. Retrospectively, with the good acceptance of Kanglaite in China, it is most unlikely to be an anti-EGFR, as no similarly serious side effects had been documented despite the very heavy use of Kanglaite in China. In a meta-analysis of 26 studies, 22 could be pooled and the conclusion was, combining it with ChT would increase the response rates. It was only recently that, with the recent concept of TME being better recognized, Kanglaite was eventually found to inhibit HIF-1α [57]. Admittedly, in the late 1990s, the exact mechanism of Kanglaite was hardly known at all, especially as the recent concept of TME was, at most, in its infancy by then. Nevertheless, as at that time, hardly any agents could ever enhance ChT response rates effectively, especially for cases resistant to multiple lines of treatment, let alone the belated availability of anti-EGFRs (in the early 2000s).

Another TCM preparation deserving attention is Yangzheng Xiaoji (YZXJ) capsules that comprise of 16 TCM herbs [56]. Despite a strong antiangiogenic element and even a direct effect on cancer cells, YZXJ is reported to have a good safety profile, let alone its convenient oral administration [56]. In mainland China, with an excellent albeit anecdotal efficacy for various cancers, it is well respected and hailed as an important cancer drug. Admittedly, further high-quality clinical studies are mandatory for further investigations.

Currently, TCM’s practice has usually been relying very heavily on highly complex but anecdotal combinations of numerous herbs, each having countless alkaloids [58]. Yet, despite such unique and undue complexity, not only there is reputable anecdotal efficacy throughout the centuries but also a good and time-honored safety profile. The secret probably lies in the prescription of herbs at their lowest effective dosage and, perhaps, depending on numerous mutual enhancement mechanisms, as together, they would achieve the desired effect which can be validated and may occasionally be better than Western medicine. Historically and on a related condition (infantile eczema, likely having a significant immunity basis), there was a well-organized clinical trial complete with herbal batch control and strict uniformity of herbal prescription. Surprisingly, TCM herbal concoctions were found to be significantly more effective than steroids for UK children tested [59]. Amazingly, this clinical trial had successfully implemented herbal batch variation control and even adopted uniformity of prescription which was clearly against the usual TCM practice.

The anti-VEGF action

Recently, several TCM herbs have been discovered to have an action against VEGFs [18, 23]. Although most of these may conveniently be taken orally and the safety profile is also good, let alone the eminent affordability, a considerable research effort is clearly still required. A brief summary of some of the beneficial effects of these agents which have mainly anti-VEGF effects is in Table 2. Recently, it has also been found that some TCMs may also inhibit immune checkpoints, especially for PD-1 and PD-ligand 1 (PD-L1). A selection of these TCMs is in Table 3. Intriguingly, despite TCM’s heavy reliance on anecdotal experience throughout the ages, it has somehow achieved initial success in overcoming the notoriously resistant TME. As far as adverse effects are concerned, interestingly, unlike the very recent IMbrave150 trial, TCM does not appear to have unacceptable bleeding episodes [35]. Of course, much more investigative efforts, especially robust clinical trials are mandatory.

The “back to the future” potential

Unexpectedly, in mainland China, Bufalin (a proprietary TCM formula) was based on a successful TCM drug that has a history of more than 1,000 years. Bufalin is a popular multi-target TCM oncology formula extracted from chansu. Interestingly, Bufalin’s actions include (but not limited to) those on HIF and VEGF. Admittedly, chansu has been used for treating cancers in mainland China for many centuries [81]. Currently, Bufalin is often prescribed for HCC, a notoriously aggressive cancer. On HCC, Ling’s group has also reported a comparative study for advanced HCC by either a TCM herbal Jiedu Granule or sorafenib [82]. Although this was not a randomized, controlled study, it was remarkable for TCM to have accomplished, for advanced HCC, a 1-year survival rate of 31.2% against 35.5% (sorafenib). This compares well with China’s usual 1-year survival rate of 35.4% (11 studies) [83]. Another remarkable achievement of TCM is that for postoperative cancer patients, Liu et al. [84] had highlighted a few series of these cases in which TCM had been found to be effective for preventing cancer recurrence and metastases; even the disease-free progression was also prolonged significantly. This shows that TCM may well be a safe and effective oncology modality of treatment, even though robust clinical trials are required for further confirmation.

Accepting the vastly different strategies adopted by Western and TCM, and looking at doxorubicin ChT being widely used for treating HCC (since the 1970s) [85] but had very low response rates (10%). In contrast, TCM, e.g., Jiedu Grannules that contain the herbal ingredient Cremastra appendiculata [86] and homoisoflavanone isolated from it, was recently found to have antiangiogenic effects [87]. Although both doxorubicin and sorafenib are Western medicine, upon comparing doxorubicin and Jiedu Grannules, one might realize that even before sorafenib has been developed, TCM already had similar effects of antiangiogenic actions that is clearly better than monotherapy doxorubicin in the 1970s. Another monotherapy that has unfortunately not been successful is the indoleamine 2,3-dioxygenase (IDO) enzyme [88]. It appears that even if one uses monotherapy to target at a single mechanism of the TME, the success rates may well be unsatisfactory. Although the vasculature may be normalized [23] by either Western or TCM, TCM’s multi-herb, multi-target approach appears to be more durable as it may well tackle significantly more escape mechanisms of the TME. Perhaps we should now have a change in the paradigm of concentrating on mostly monotherapies when we face such a highly evasive TME. Taken together, with TCM’s time-honored efficacy, good safety profile, and eminent affordability, it might be a good alternative candidate for combining effectively with ICBs. A probable “bonus” advantage is that some TCMs would also have the potential of tackling the irAEs of ICBs [47–50].

To AI’s significant contribution TCM validation

As TCM is known to be highly complex and has imprecise descriptive terms, appropriately, the future of TCM development should go by artificial intelligence (AI) technologies. Feasible ways of achieving this objective are through various network pharmacology techniques, as hitherto unknown mechanisms of TCM may thus be further elucidated despite the apparently undue complexity and profound mystery of TCM. A total of 32 TCM studies had been reviewed with AI modes like data mining (DM) and machine learning (ML), being subdomains of AI. ML can achieve pattern recognition [89]. DM would selectively extract useful information from massive data to discover new and useful patterns; it would also look for meaningful and useful data, e.g., specifically for the relationship between TCM and TME. ML involves discovering algorithms that have the design, study data, and developmental prospects of useful algorithms enabling ML (on its own) while under human directives. Remarkably, studies could be conducted to match and learn (e.g., through blood tests) to correlate with TCM’s pulse palpation and tongue observation parameters for syndrome differentiation [90] (in line with TCM practice). Importantly, for TCM, AI technology may provide more precise answers despite imprecise TCM description terms and the largely anecdotal and even empirical TCM approaches. For instance, AI technologies may help to prescribe the most effective herbal medicines despite herbal medications’ highly complex herbal combinations, let alone countless compounds involved. Nevertheless, robust and well-designed randomized controlled clinical trials are mandatory for confirming TCM practice through enhanced AI technologies.
